Current Location：Home > Product > KAP-700 type |
|

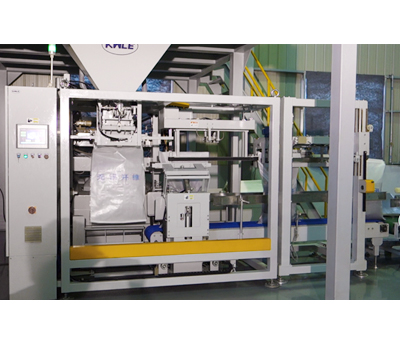

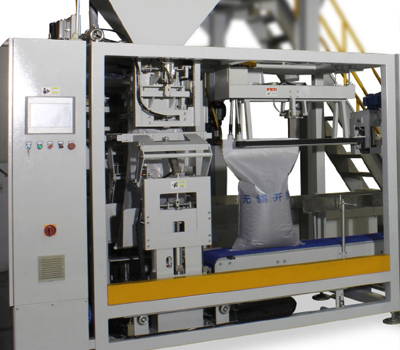

| KAP-700 type |
| |
|
|
|
| |
| Upholding the advanced automatic packing technology from Europe |
| Adapting to all materials which can flow by gravity |
| Applicable to line-styled pillow bag or Gusset type bag |
| Also applicable to soft open mouth bag |
| Compact structural design |
| Compact clipped bag design avoid raising dust |
| Friendly human-machine interface, convenient for use |
| Remote diagnosis function (optional), easy for maintenance |
Type of packing bag:
|
line-styled pillow bag or Gusset bag |
Material of packing bag:
|
Material of packing bag: |
Size of packing bag:
|
(650~1250)L×(380~700)（W）mm |
Working capacity:
|
700~900 Bags/h
(depend on specific property and packing dimension of materials to be packed)
|
Filling volume:
|
20~50kg |
Power supply:
|
AC380V(+10%~-15%) /3P/50Hz，7.5kW |
Compressed air:
|
Pressure: 0.6Mpa (clean and dry) ；consumption: ~1600NL/min |
Operating temperature:
|
+5℃～＋45℃ |
Noise:
|
75dB（A） |
Capacity of bag magazine:
|
3 pile, with 100-200 bags for each pile |
|
|
|
|
|
|
